Prosthetic & Orthotic Router Manufacturer in Delhi
Precision Shaping, Trimming & Finishing for P&O Fabrication

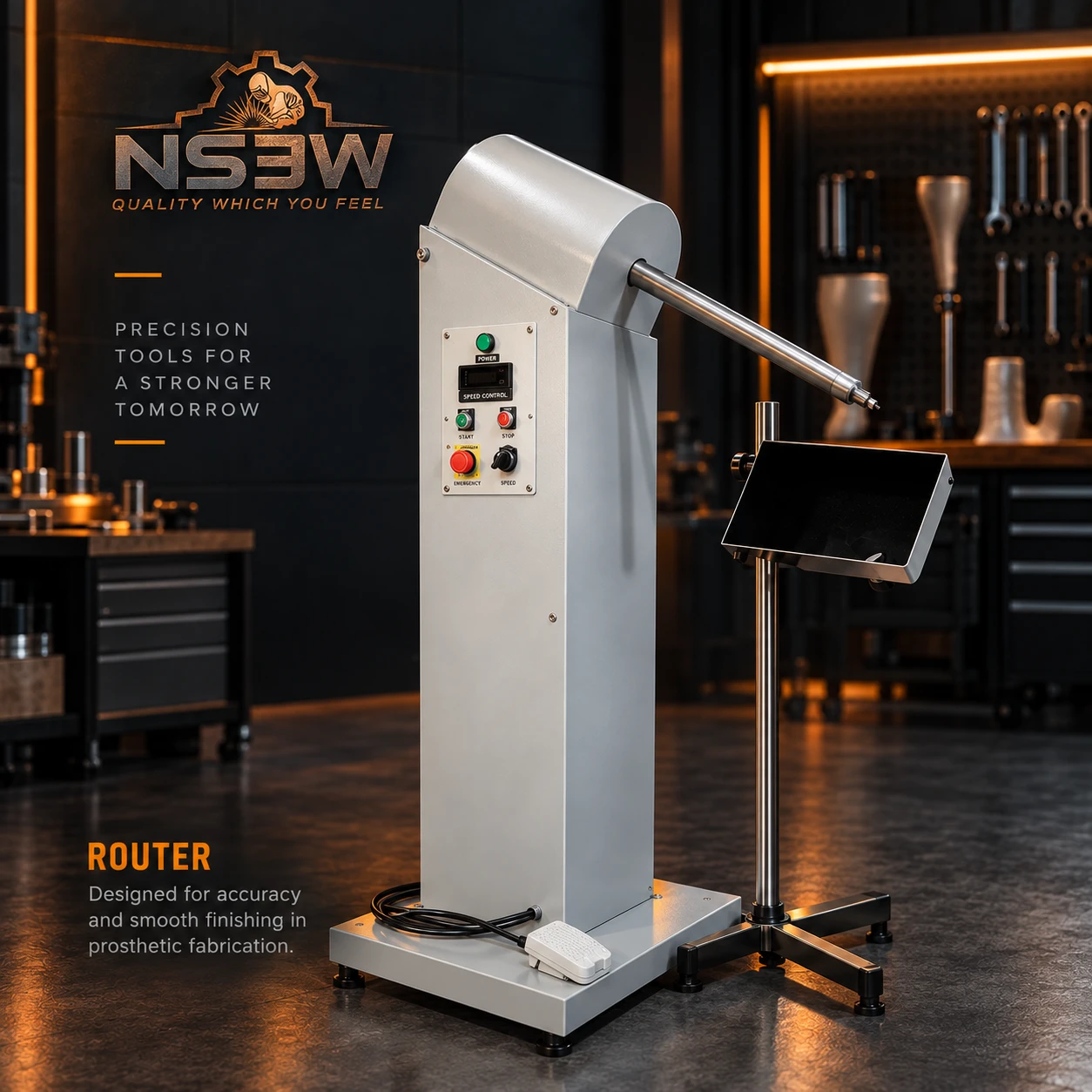

The NSEW Router is a powered prosthetic and orthotic fabrication machine designed for shaping, trimming and finishing operations. It is available with a 1400 rpm single-speed motor or a 1400/2800 rpm two-speed motor and includes a Ø120 mm connection for a central dust-extraction system.
Overview
What The Router Does
NSEW (Namdhari Saw & Engg. Works) manufactures the Router from Naraina Industrial Area, New Delhi, India — powered workshop equipment designed for shaping, trimming and finishing operations during prosthetic and orthotic fabrication.
The machine is available with single-speed and two-speed motor configurations. The single-speed configuration operates at 1400 rpm, while the two-speed configuration provides 1400 and 2800 rpm operating speeds. The Router is powered by a 1.1 kW motor with a 440 V, 50 Hz, three-phase electrical supply.
For workshop dust-management integration, the Router provides a Ø120 mm connection for an appropriate central dust-extraction system together with an adjustable extractor hopper positioned around the working area. Explore NSEW dust-extraction equipment, including the Dust Collector, for appropriate workshop extraction requirements.
The motor assembly is mounted on a sturdy steel base, providing a dedicated floor-standing fabrication station for professional prosthetic and orthotic workshops.
The Router is intended for appropriate shaping, trimming and finishing operations using compatible tooling selected according to the material and fabrication procedure.
For abrasive-belt sanding and surface finishing, explore the NSEW Linisher. Explore NSEW workshop dust-extraction equipment, including the Dust Collector, for appropriate workshop extraction requirements. See NSEW's full prosthetic and orthotic equipment manufacturing portfolio in New Delhi.
Key Features
Built For The Workshop Floor
Single / Two-Speed Motor Options
Available with single-speed or two-speed motor configurations to suit appropriate P&O fabrication requirements.
Up To 2800 rpm
The two-speed motor configuration provides 1400 and 2800 rpm operating speeds, while the single-speed configuration operates at 1400 rpm.
1.1 kW Motor
Powered by a 1.1 kW motor for professional prosthetic and orthotic fabrication applications.
Central Dust Extraction Connection
Designed with a Ø120 mm extractor connection for connection to an appropriate central dust-extraction system.
Adjustable Extractor Hopper
Adjustable extractor hopper helps position the extraction point around the appropriate working area.
Sturdy Steel Base
Router motor assembly is supported by a sturdy steel base for professional workshop installation.
Professional P&O Fabrication
Designed for appropriate shaping, trimming and finishing operations in prosthetic and orthotic workshops.
Where It's Used
Applications
- Prosthetic fabrication workshops
- Orthotic fabrication workshops
- Shaping of prosthetic and orthotic components
- Trimming of prosthetic and orthotic components
- Finishing of prosthetic and orthotic components
- Fabrication laboratories
- P&O training institutes
Confirmed Data
Technical Specifications
Only confirmed and general specification data is listed below. Overall machine dimensions and weight are available on enquiry.
| Product Name | Router |
|---|---|
| Descriptive Type | Prosthetic & Orthotic Fabrication Router |
| Product Category | Prosthetic & Orthotic Fabrication Equipment |
| Primary Application | Shaping, Trimming & Finishing in P&O Fabrication |
| Motor Configuration | Single-Speed / 2-Speed |
| Single-Speed Motor | 1400 rpm |
| 2-Speed Motor | 1400 / 2800 rpm |
| Motor Power | 1.1 kW |
| Electrical Supply | 440 V |
| Frequency | 50 Hz |
| Phase | 3 Phase |
| Extractor Connection | Ø 120 mm |
| Dust Extraction | Connection to Central Dust Extractor |
| Extractor Hopper | Adjustable |
| Threaded Bolt | 5/8" or M16 |
| Base | Steel |
| Colour / Finish | Light Grey Dual Tone |
| Installation | Floor-Standing |
| Operation | Powered |
Why Choose NSEW
Built By The Same Workshop, Every Time
- 15+ years manufacturing prosthetic and orthotic workshop equipment from Naraina Industrial Area, Delhi
- Router motor, steel base and dust-extraction hardware built and quality-inspected in-house
- Direct manufacturer contact for fabrication guidance and quote-ready specification support
Common Questions
Router FAQ
What speed does the NSEW Router operate at?
The NSEW Router is available in single-speed and two-speed configurations. The single-speed version operates at 1400 rpm, while the two-speed version provides 1400 and 2800 rpm operating speeds.
What is the motor power of the NSEW Router?
The NSEW Router uses a 1.1 kW motor.
What electrical supply does the NSEW Router require?
The Router is specified for a 440 V, 50 Hz, three-phase electrical supply.
Can the NSEW Router connect to a dust extractor?
Yes. The Router provides a Ø120 mm extractor connection designed for connection to an appropriate central dust-extraction system.
Does the Router have an extractor hopper?
Yes. The Router includes an adjustable extractor hopper for positioning the extraction point around the appropriate working area.
Is the NSEW Router variable speed?
The verified configurations are single-speed and two-speed rather than continuously variable speed. The single-speed version operates at 1400 rpm, while the two-speed version provides 1400 and 2800 rpm.
